Movable CableEPR
EPR Rubber Movable Cable

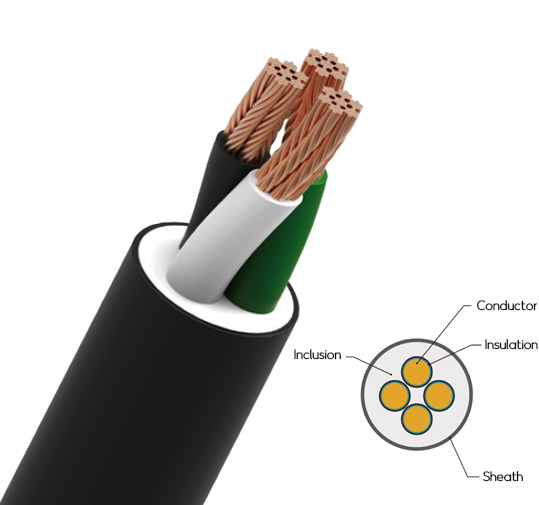

0.6/1kV EPR Rubber Insulated Flexible Cable(PNCT)
With industrial facilities, the cable is a wire to use for wiring of low-pressure portable electrical equipment in locations such as mines, farms, constuction plants and so forth.
The cable covered with highly resilient chloroprene rubber has high mechanical resistance to shock, friction and flexion. It is used broadly in this field because it has strong chemical resistance such as water, heat, acid and alkaline resistance.
- Conductor
- Tinning stranded conductor is 5 Level
- Insulator
- EPR Rubber
- Union
- Union to round insulated cores when it is more than 2 core
- Sheath
- SE1
- Insulator Color
- 2 Core - Black, White
3Core - Black, White, Green
4 Core - Black, White, Green, Red
- Warning Temperature
- 70℃
| Conductor Tinning Annealed copper wire | Thickness of Insulator | 1 core | 2 cores | 3 cores | 4 cores | 5 cores | Conductior Resistance | Test Voltage | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cross Sectional Area | Conductor Maximum Diameter of Wire Overall Diameter( | Overall Diameter (Approx.) | Thickness of Sheath | Overall Diameter (Approx.) | Thickness of Sheath | Overall Diameter (Approx.) | Thickness of Sheath | Overall Diameter (Approx.) | Thickness of Sheath | Overall Diameter (Approx.) | Thickness of Sheath | Overall Diameter (Approx.) | |||
| ㎟ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | ㎜ | Ω/㎞ | v |
| 1.0 | 0.21 | 1.3 | 1.0 | - | - | 1.8 | 11.5 | 1.9 | 12.2 | 1.9 | 13.1 | 2.0 | 13.8 | 20.0 | 3500 |
| 1.5 | 0.26 | 1.6 | 1.0 | 1.6 | 7.9 | 1.9 | 12.3 | 1.9 | 12.9 | 2.0 | 14.1 | 2.0 | 14.6 | 13.7 | |
| 2.5 | 0.26 | 2.1 | 1.0 | 1.6 | 8.4 | 1.9 | 13.3 | 2.0 | 14.2 | 2.0 | 15.3 | 2.1 | 16.7 | 8.21 | |
| 4 | 0.31 | 2.6 | 1.0 | 1.7 | 9.1 | 2.0 | 14.5 | 2.0 | 15.2 | 2.1 | 16.7 | 2.2 | 17.7 | 5.09 | |
| 6 | 0.31 | 3.6 | 1.0 | 1.7 | 10.2 | 2.1 | 17.0 | 2.2 | 18.2 | 2.3 | 19.9 | 2.4 | 21.3 | 3.39 | |
| 10 | 0.41 | 4.8 | 1.0 | 1.8 | 11.6 | 2.3 | 19.8 | 2.4 | 21.2 | 2.5 | 23.2 | 2.6 | 24.9 | 1.95 | |
| 16 | 0.41 | 6.0 | 1.0 | 1.9 | 12.9 | 2.5 | 22.4 | 2.5 | 23.7 | 2.7 | 26.3 | 2.8 | 28.3 | 1.24 | |
| 25 | 0.41 | 7.4 | 1.2 | 2.0 | 14.9 | 2.7 | 26.4 | 2.8 | 28.2 | 3.0 | 31.2 | 3.2 | 33.9 | 0.795 | |
| 35 | 0.41 | 8.7 | 1.2 | 2.1 | 16.3 | 2.9 | 29.2 | 3.0 | 31.2 | 3.2 | 34.5 | 3.4 | 37.6 | 0.565 | |
| 50 | 0.41 | 10.4 | 1.4 | 2.2 | 18.6 | 3.1 | 33.8 | 3.3 | 36.3 | 3.5 | 40.2 | 3.8 | 44.0 | 0.393 | |
| 70 | 0.51 | 12.5 | 1.4 | 2.4 | 20.9 | 3.4 | 38.2 | 3.5 | 40.8 | 3.8 | 45.4 | 4.1 | 49.8 | 0.277 | |
| 95 | 0.51 | 14.5 | 1.6 | 2.5 | 23.5 | 3.7 | 43.6 | 3.9 | 46.8 | 4.2 | 52.0 | 4.5 | 57.2 | 0.210 | |
| 120 | 0.51 | 16.2 | 1.6 | 2.6 | 25.4 | 3.9 | 47.4 | 4.1 | 50.9 | 4.5 | 56.7 | - | - | 0.164 | |
| 150 | 0.51 | 18.2 | 1.8 | 2.8 | 28.1 | 4.2 | 52.6 | 4.5 | 56.6 | 4.8 | 62.8 | - | - | 0.132 | |
| 185 | 0.51 | 20.2 | 2.0 | 3.0 | 30.9 | - | - | - | - | - | - | - | - | 0.108 | |
| 240 | 0.51 | 23.3 | 2.2 | 3.2 | 34.6 | - | - | - | - | - | - | - | - | 0.0817 | |
| 300 | 0.51 | 26.0 | 2.4 | 3.4 | 38.0 | - | - | - | - | - | - | - | - | 0.0654 | |
| 400 | 0.51 | 30.3 | 2.6 | 3.7 | 43.2 | - | - | - | - | - | - | - | - | 0.0495 | |
