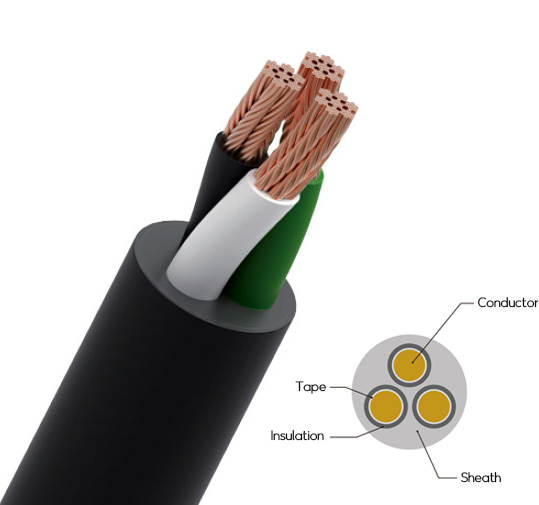

0.6/1kV PVC Insulated & Sheathed Flexible Power Cable(VCT)

The cable uses for the fixed wiring and portable electric equipment using less than 0.6/1kV of voltage in factories, squares and farms.

  • Conductor
  • The stranded conductor is 5 Level
  • Insulator
  • PVC/A
  • Union
  • Combining insulated cores as a round shape when it is more than 2 core
  • Sheath
  • PVC/STI
  • Insulator Color
  • 2 Core - Black, White
    3 Core - Black, White, Red(Green)
    4 Core - Black, White, Red, Green
  • Warning Temperature
  • 70℃
Brochure Inquiry
Conductor Thickness of Insulator Thickness of Sheath Overall Diameter (Approx.) Conductior Resistance Test Voltage Weight Calculation
Nominal Cross Sectional Area Maximum Diameter of Wire Diameter (Approx.) Copper Tin-Coated Copper
㎟ ㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ Ω/㎞ v/5min ㎏/㎞
1.0 0.21 1.3 0.8 1.4 6.0 19.5 20.0 3500 50
1.5 0.26 1.6 0.8 1.4 6.5 13.3 13.7 60
2.5 0.26 2.1 0.8 1.4 7.0 7.98 8.21 80
4 0.31 2.6 1.0 1.4 8.0 4.95 5.09 100
6 0.31 3.6 1.0 1.4 9.0 3.30 3.39 130
10 0.41 4.8 1.0 1.4 10.0 1.91 1.95 180
16 0.41 6.0 1.0 1.4 11.0 1.21 1.24 240
25 0.41 7.4 1.2 1.4 13.0 0.780 0.795 350
35 0.41 8.7 1.2 1.4 14.5 0.554 0.565 450
50 0.41 10.4 1.4 1.4 16.5 0.386 0.393 610
70 0.51 12.5 1.4 1.4 18.5 0.272 0.77 820
95 0.51 14.5 1.6 1.5 21.5 0.206 0.210 1110
120 0.51 16.2 1.6 1.5 23.0 0.161 0.164 1370
150 0.51 18.2 1.8 1.6 26.0 0.129 0.132 1680
185 0.51 20.2 2.0 1.7 28.0 0.106 0.108 2070
240 0.51 23.3 2.2 1.8 32.0 0.0801 0.0817 2710
300 0.51 26.0 2.4 1.9 35.5 0.0641 0.0654 3360
